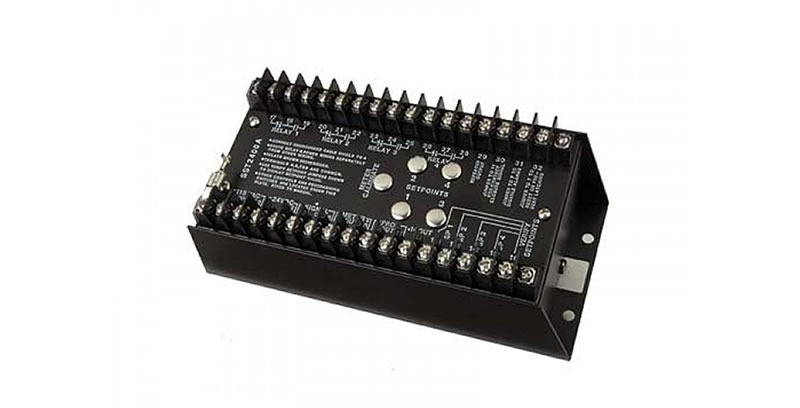

Dynalco SST-2000A Speed Transmitter
Dynalco SST-2000A 速度传感器

速度传感器，CSA一般分类和CE认证。接收来自无源或有源磁传感器、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。SST-2000A/H系列是高度可配置的产品。 SPEED TRANSMITTER, CSA General Classification and CE approved.Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs.SST-2000A/H series is a highly configurable product.

Dynalco SST-2000A Speed Switch Transmitter
速度开关传感器

SST-2000A Speed Transmitter
资料下载:

SST-2000A Data Sheet
SST-2000 Manual
SST-2000A Agency Approval (CSA)
SST-2000A Agency Approval (ABS)

Product Code: SST-2000A

描述Description

SST-2000A Speed Transmitter
SST-2000A速度变送器

SPEED TRANSMITTER, CSA General Classification and CE approved.
Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs.
The SST-2000A/H series is a highly configurable product.
速度变送器， CSA总分类和CE认证。
接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。
SST-2000A / H系列是高度可配置的产品。

Speed Transmitter and Switches
SST-2000 Series

Description

SST-2000A Speed Transmitter

SPEED TRANSMITTER, CSA General Classification and CE approved

Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

SST-2000H Speed Transmitter

SPEED TRANSMITTER: CSA: Cls I, Div 2, Grp C,D

Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA and CE approved.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

SST-2200A Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 2 standard relay setpoints, CSA General Classification

The SST-2200A has 2 relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA, CE approved.

The SST- 2000A/H Speed Switch series is a highly configurable product.

SST-2200H Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 2 sealed relay setpoints, CSA: Cls I, Div 2, Grp C,D.

The SST-2200H has 2 sealed relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA, and CE approved.

The SST-2000A/H Speed Switch series is a highly configurable product.

SST-2400A Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 4 standard relay setpoints, CSA General Classification

The SST-2400A has 4 relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA General Classification, and CE approved.

The SST- 2000A/H Speed Switch series is a highly configurable product.

SST-2400H Speed Transmitter

SPEED TRANSMITTER CSA Class 1, Division 2, Groups C, D Approvals: CSA and CE approved.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

Features

• Proportional outputs of either 4–20 mA (standard), 0–5 Vdc, or 0–10 Vdc are field selectable. Standard 0-1 mAdc meter output included.
• Models available with up to four alarm setpoints.
• Field-selectable frequency range.
• Field-adjustable sensitivity control.
• Field-programmable for many types of sensors, including contact closure input.
• Repeater output drives counters and self-powered digital tachometers such as Dynalco's SPD-100 and SPD-700.
• Regulated 14 Vdc output powers active pickups (e.g. M910), accessories, and digital meters such as DPM-105 or MTH-103D, and the 12 Vdc versions of the internally lighted SPD-100L and LST-100L.
• Alarms are field-configurable for DPDT (SST-2400 A or -H only), overspeed, underspeed, energize, de-energize, latch, auto-reset.
• Integral VERIFY, requires external meter. Permits viewing and setting of setpoint value without actuating the relays.
• Input Frequency: Full-scale values from 0–0.1Hz (6 pulses per minute) to 0–50,000 Hz.
• Function: Converts frequency input (speed, rate) into linear proportional dc output. Provides alarm setpoints for over- and underspeed control and for sequential, startup, and shutdown switching.
• Signal Sources: Includes magnetic pickups, ac generators, contact closures, photocells.
• Output Range Capability: Current source up to 50 mAdc output always included.
• Alarm Setpoints: Available with two or four relays. Also available with no relays

Applications

• Engines
• Machines
• I/P drivers
• Instrumentation
• Process control
• Recording
• Measurement

描述

SST-2000A 速度开关变送器

速度开关变送器，CSA总分类和CE认证

接收来自被动或主动磁拾取器、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。

SST-2000A/H 速度发射器系列是一个高度可配置的产品。

SST-2000H 速度开关变送器

速度发送器：CSA：I类，2区，C、D组

接收来自被动或主动磁拾取装置、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。认证：CSA和CE认证。

SST-2000A/H 速度发射器系列是一个高度可配置的产品。

SST-2200A 速度开关

速度开关：超速/欠速保护，带有2个标准继电器设定点的发射器，CSA通用分类

SST-2200A具有2个继电器设定点，并接收来自被动或主动磁拾取、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。认证：CSA、CE认证。

SST- 2000A/H 速度开关系列是一款高度可配置的产品。

SST-2200H 速度开关

速度开关：超速/欠速保护，带有2个密封继电器设定点的发射器，CSA：Cl I，Div 2，Grp C，D。

SST-2200H 有两个密封的继电器设定点，并接收来自被动或主动磁拾取、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。认证：CSA 和 CE 认证。

SST-2000A/H 速度开关系列是一种高度可配置的产品。

SST-2400A 速度开关

速度开关：超速/欠速保护，带有4个标准继电器设定点的发射器，CSA通用分类

SST-2400A具有4个继电器设定点，并接收来自被动或主动磁拾取、轴编码器、触点闭合、流量计等的信号输入，以提供比例模拟输出。认证：CSA通用分类和CE认证。

SST- 2000A/H 速度开关系列是一款高度可配置的产品。

SST-2400H 速度开关变送器

SPEED TRANSMITTER CSA 1类，2区，C、D组认证：CSA和CE认证。

SST-2000A/H 速度发射器系列是一个高度可配置的产品。

功能

• 4-20 mA（标准）、0-5 Vdc或0-10 Vdc的输出比例可现场选择。标准0-1 mA直流电表输出包括在内。
• 提供最多四个报警设定点的型号。
• 现场可选频率范围。
• 现场可调灵敏度控制。
• 适用于多种类型的传感器，包括接触闭合输入，可现场编程。
• 重复器输出驱动计数器和自供电数字转速表，例如 Dynalco 的 SPD-100 和 SPD-700。
• 调节后的14 V直流输出为活动拾音器（例如M910）、配件和数字仪表（如DPM-105或MTH-103D）以及内部照明的12 V直流版本SPD-100L和LST-100L供电。
• 警报可现场配置为DPDT（仅限SST-2400 A或-H），超速，欠速，通电，断电，锁定，自动重置。
• Integral VERIFY，需要外部仪表。允许查看和设置设定值而不执行继电器操作。
• 输入频率：0-0.1Hz（6脉冲/分钟）至0-50,000 Hz的全量程值。
• 功能：将频率输入（速度、速率）转换为线性比例直流输出。提供用于超速和欠速控制以及顺序、启动和停车切换的报警设定点。
• 信号源：包括磁电式拾音器、交流发电机、触点闭合、光敏电阻。
• 输出范围能力：电流源最高可输出50毫安直流电，输出始终包括在内。
• 报警设定点：可与两个或四个继电器一起使用。也可以不使用继电器。

应用

• 发动机
• 机器
• I/P 驱动器
• 仪器设备
• 过程控制
• 记录
• 测量
