DYNALCO Magnetic Pickup Speed Sensors look-up

This document will help you quickly find the Dynalco Magnetic Pickup product page. If you already have the part number, you can simply do a quick search. If you don’t have the part number, scroll to page two for a quick view of Magnetic Pickups listed on this site. All part numbers have a link that will take you directly to the product page. If you don’t see the product you are looking for, email us at TechSupport@barksdale.com.
Hyperlink Instructions:

Press and hold (Ctrl) + (F) keys

* Look for the reader*

1) In the Reader field, insert product number and press enter.
2) Click on the highlighted product number. This will take you to the product page.
Links will take you to Barksale.com for product item information

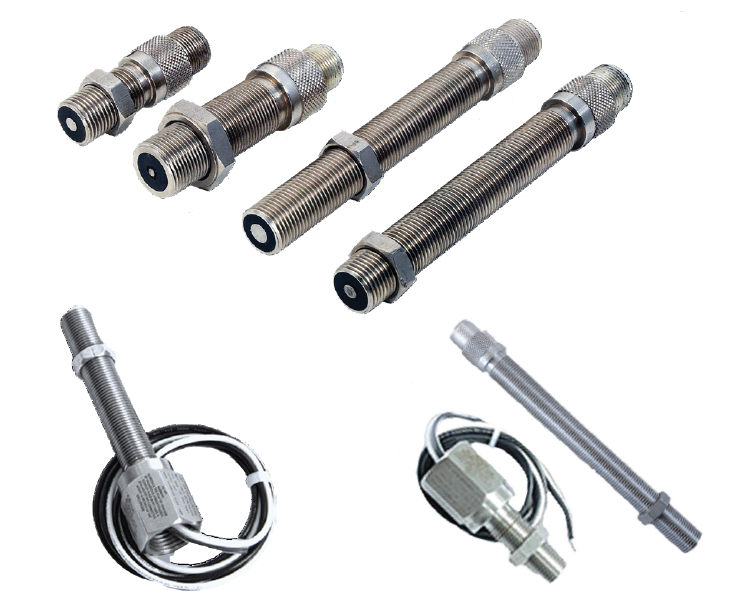

Magnetic Pickups/Speed Sensors

Active (Powered) Magnetic Pickups

Ordinary Area
TTL Output Source Tracking
M928 -5/8-18 x 2.5” - 3 Pin M928-24 -5/8-18 x 2.5” - 3 Pin
Zero Speed Hall-Effect Sensors
M806 -5/8-18 x 4.5” - 3 Pin M919-3-25 -5/8-18 x 2.5” - 3 Pin M919-3-45 -5/8-18 x 4.5” - 3 Pin
M951 -5/8-18 x 4.5” - 3 Pin M919-3-25 -5/8-18 x 2.5” - 3 Pin
Hazardous Area
Zero Speed Hall-Effect Sensors

- Multiple Thread Sizes and Lengths

M920 Series
Passive (Variable Reluctance) Magnetic Pickups

Ordinary Area
Standard Sensitivity (min. Speed > 500 RPM)
M101 -5/8-18 x 1.125” - 2 Pin M101-6 -5/8-18 x 6” - 2 Pin M104-6 -3/4-20 x 1.875”- 30” Leads M107 - 5/8-18 x 1.125” - 2 Pin - Power Source M131 -5/8-18 x 4” - 2 Pin M131-6 -5/8-18 x 6” - 2 Pin M134-6 -5/8-18 x 6” - 2 Pin M137 -3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2” M143 -10-32 x 0.875” - 14” Leads - Miniature, Gear <2” M151 -5/8-18 x 2.5” - 2 Pin M183-6-N -No Header, #20, 12” Leads M189 -5/8-18 x 2.5” - 2 Pin M192 -5/8-18 x 4” - 72” Leads M304 -3/4-16 x 4” - 2 Pin M320 -M18 x 1.5 - 2 Pin M343 -3/4-20 x 2” - 6 Pin - Dual output (Bi directional) M354 -M16 x 1.5 - 17” cable M356 -3/4-16 x 2” - 17” cable - Power Source M367 -M16 x 1.5 - 10” cable M332 -5/8-18 x 2.5” - 2 Pin M193 -5/8-18 x 4” - 72” Leads M306 -REF. 800-13041
High Sensitivity (min. Speed > 300 RPM)
M102 -5/8-18 x 1.125” - 2 Pin M168 -5/8-18 x 1.75” - 12” Leads M233-6 -5/8-18 x 6” - 2 Pin
M133 -5/8-18 x 4” - 2 Pin M183 -5/8-18 x 2.5” - 2 Pin M303 -5/8-18 x 1.125” - 2 Pin
M138 -3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2” M183-6 -5/8-18 x 6” - 2 Pin M334 -3/8-24 x 1.25” - 12’ cable - Miniature, Gear <2”
M155 -5/8-18 x 1.125” - 2 Pin - Low Drag, flow meter M202-6 -5/8-18 x 6” - 2 Pin M321 -
M155-6 -5/8-18 x 6” - 2 Pin - Low Drag, flow meter M207 - 3/4-16 x 4” - 2 Pin - Power Source

Ultra-High Sensitivity (min. Speed < 300 RPM)
M142 -5/8-18 x 1.125” - 2 Pin M203-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited M208 - 3/4-16 x 4” - 2 Pin - Power Source
M184 -5/8-18 x 2.5” - 2 Pin M204-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited M281 -M16 x 1.5 - 2 Pin
M185 -5/8-18 x 4” - 2 Pin M205-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)
M104 -3/4-20 x 1.875”- 30” Leads M135 -5/8-18 x 4” - 2 Pin M201 -5/8-18 x 1.125” - 2 Pin
M134 -5/8-18 x 1.125” - 2 Pin M139 -3/4-20 x 2” - 2 Pin M231 -5/8-18 x 4” - 2 Pin
High Sensitivity (min. Speed > 300 RPM)

M140 -3/4-20 x 1.875” -30” Leads M219 -5/8-18 x 3.5” - 15’ Leads M319 -5/8-18 x 3.5”- 30” Leads
M180 -5/8-18 x 1.5” - 30” Leads M233 -5/8-18 x 4” - 2 Pin M337 -5/8-18 x 6” - 30” Leads
M202 -5/8-18 x 1.125” - 2 Pin M318 -3/4-20 x 3.5” - 30” Leads
Ultra-High Sensitivity (min. Speed < 300 RPM)
M203 -5/8-18 x 4” - 2 Pin - Zener-Limited M204 - 5/8-18 x 2.5” - 2 Pin - Zener-Limited M205 - 5/8-18 x 4” - 2 Pin - Zener-Limited

Speed Sensing Accessories
C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/ C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/ TT-100 Tach Tape
Connector Assembly Connector Assembly
C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/ PG-100 Pulser ISB-101 Intrinsically Safe Barrier (Hazardous Area)
Connector Assembly
